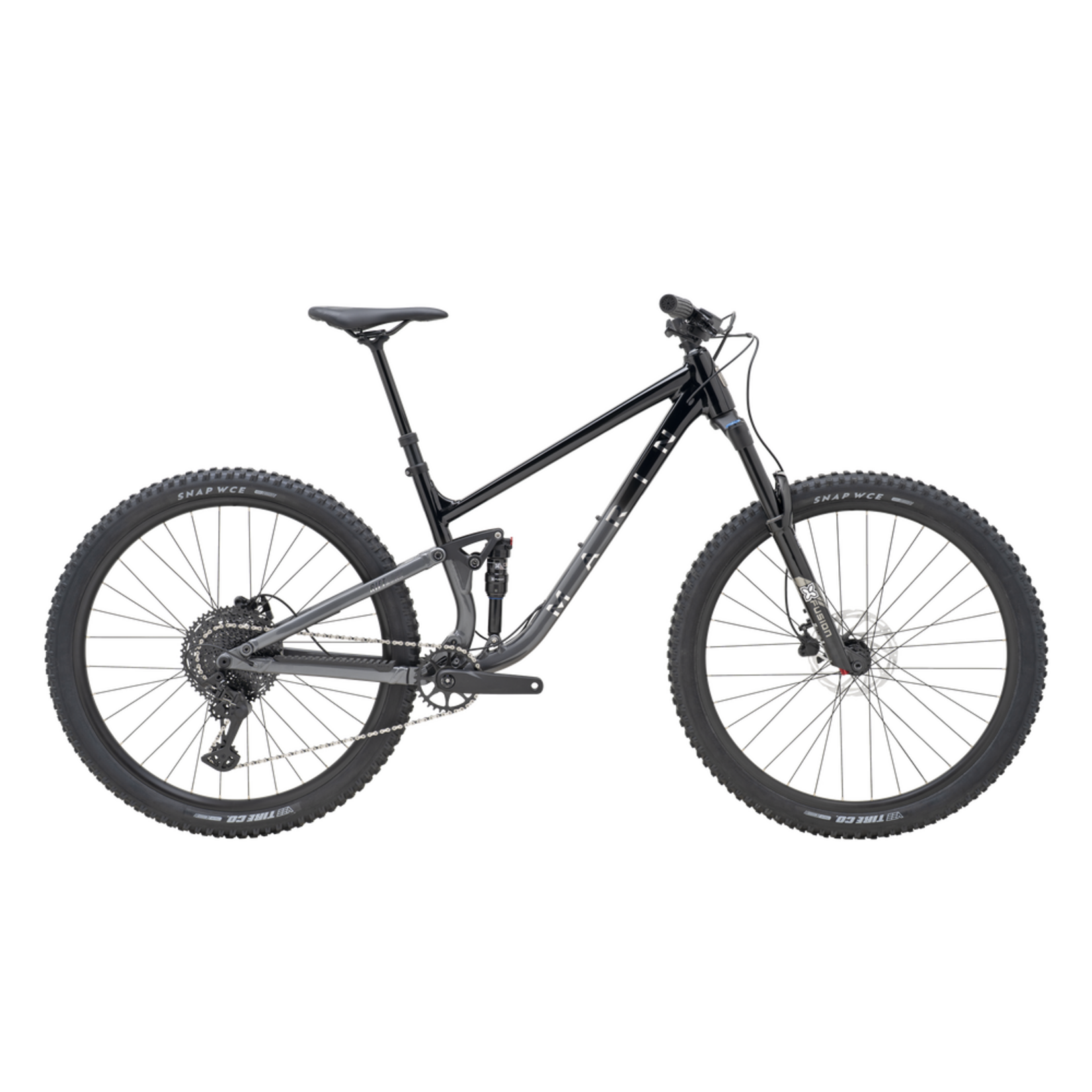

The Marin Rift Zone 1 is your gateway into the Rifty family. Built to push your riding limits — not your budget — it features reliable X-Fusion suspension, an X-Fusion Manic dropper post, and a carefully curated mix of Marin and Shimano components for durability and trail-ready performance.

With grippy Vee Tire rubber and proven Shimano drivetrain parts, this bike is ready to hit the trails from day one.

Specifications

FRAME
Series 3 6061 Aluminum
27.5" or 29" Wheels
130mm Travel
MultiTrac Suspension Platform
148x12mm Boost Thru-Axle
73mm Threaded Bottom Bracket with ISCG05 Tabs

FRONT SUSPENSION
X-Fusion Slide (29") or Sweep (27.5") Boost RC
140mm Travel
Compression & Rebound Adjustment
44mm Offset

REAR SUSPENSION
X-Fusion O2 Pro R
Custom Tune
210x55mm
M8x25mm Hardware (Top & Bottom)

RIMS
Marin Aluminum Double Wall
29mm Inner Width
Pinned Joint
Disc Specific
Tubeless Compatible

REAR HUB
Shimano HB-MT200B
141 QR
Centerlock
Standard Freehub Body

FRONT HUB
Shimano HF-MT400B
110x15mm
Centerlock

SPOKES
14g Black Stainless Steel

TIRES
Vee Tire Snap WCE 2.35"
Top 40 Compound
GXE Core
90 TPI
Tubeless Compatible

REAR DERAILLEUR
Shimano RD-U6000
11-Speed GS

SHIFT LEVER
Shimano SL-U6000-11R
11-Speed

CRANKSET
Marin Forged Alloy
Integrated Steel 32T Narrow-Wide Chainring
170mm Crank Length
Boost Spacing

BOTTOM BRACKET
External Sealed Cartridge Bearing
